Horizontal 5‑Axis

Improve milling speed and flexibility.

Makino Five-Axis horizontal machining centers offer a globally competitive edge. Our accuracy and automation deliver higher productivity at the lowest cost per part.
a500z sil

Where complexity and rigidity meet

Whether you’re cutting aluminum, steel, or titanium or making complex parts with high metal removal, a Makino five-axis horizontal machining center can be your best solution. Depending on your parts’ geometries, the use of five-axis machining processes can likely reduce both setup and lead time, expanding your capabilities for capturing future work. With more efficient chip handling and likely higher rigidity than vertical machines, the move to horizontal CNC maching can transform your manufacturing.

Makino takes five-axis horizontal machining to the next level with our a500Z. We offer:
  • High rigidity resulting from the a500Z’s unique double slant structure and true three-point leveling. Makino has developed multi-axis CNC milling machines that are highly productive, maximizing metal removal and minimizing perishable tooling costs.
  • High accuracy through integrated active temperature control, including ball screw core cooling, direct drive rotary axes cooling and spindle jacket cooling.
  • Automation ready with features promoting easy integration into direct robot load systems or Makino’s MMC2 pallet handling system. When integrated into an automated system, you can expect spindle utilization rates of up to 95%, and fully-unattended operation over nights and weekends.

Choose Your Horizontal Machining Center

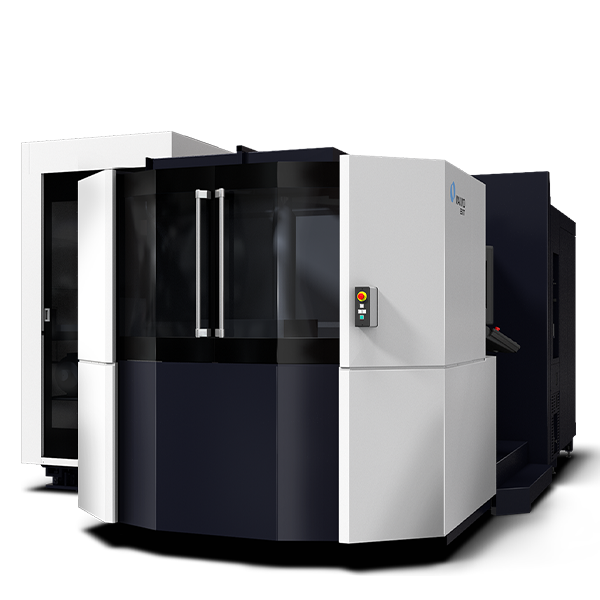

Makino 1-Series
All Makino 1-Series horizontal machining centers can be configured for full five-axis horizontal machining applications, ideal for efficient high production automotive or aerospace components manufacturing. Low maintenance, easy installation and highly rigid three-point leveled platform utilizing proven support systems such as spindles, tool changer, and pallet changer are all standard.
Makino MAG-Series
The Makino MAG-Series of five-axis horizontal machining centers are the ideal choice for machining medium to large aluminum airframe components. Unparalleled aluminum metal removal rates and superior chip management capabilities have raised the bar for productivity and efficiency.
Makino T-Series
The Makino T-Series with TI ADVANTIGE™ titanium machining technologies provide four times the productivity and up to nine times the tool life over traditional titanium milling. High-volume, high-pressure cooling draws heat away from the titanium, supporting the integrity of the cutting tool.  The series features a unique combination of high range of axes motion and active dampening technologies.
Makino G-Series
Eliminate non-value-added time in the manufacturing process by combining grinding, milling, and drilling operations in the same machine. The Makino G-Series horizontal machining centers are capable of performing all of these operations in difficult-to-machine nickel-based alloys. The patented VIPER grinding process delivers coolant via the vitreous grinding wheel pores for heat control.
Makino MCD-Series
Featuring counterbalanced box way-style construction, the Makino MCD-Series are designed for large machining of hard metals such as stainless steels and titanium for the aerospace industry and other complex applications. These trunnion-style Five-axis horizontal machining centers are supported by a range of spindle offerings, and unique dual-driven rotary axes let you do high-force machining with the rotary in motion.
learn more

1-Series

Pallet:

500 mm x 500 mm

19.7” x 19.7”

X:

900 mm

35.4"

Y:

750 mm

29.5"

Z:

800 mm

31.5"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Ø700 mm / Ø900 mm x H600 mm (w/limitation)

Ø27.6” / Ø35.4” x H23.6” (w/limitations)

Spindle Taper:

CAT40 (std/14k) / HSK-A63 (opt/14k; req’d/20k & 24k)

CAT40 (std/14k) / HSK-A63 (opt/14k; req’d/20k & 24k)

Pallet:

500 mm

19.7"

X:

730 mm

28.7"

Y:

750 mm

29.5"

Z:

500 mm - 700 mm

19.7" - 27.6"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Ø 630 mm x 500 mm High

Ø 24.9” x 19.7” High

Pallet:

630 mm

24.8"

X:

1,280 mm

50.4 "

Y:

1,200 mm

47.2 "

Z:

1,120 mm - 1,325 mm

44.1" - 52.2"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Ø 1000 mm x 800 mm High

Ø 39.4” x 31.5” High

Pallet:

800 mm

31.5"

X:

1,400 mm

55.1"

Y:

1,200 mm

47.2"

Z:

1,185 mm - 1,265 mm

46.7" - 49.8"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Ø 1,250 mm x 1,000 mm High

Ø 49.2" x 39.4" High

Pallet:

BBT50 Tool holder

BBT50 Tool holder

X:

580 mm

22.8"

Y:

640 mm

25.2"

Z:

500 mm

19.7"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Pallet:

400 mm

15.75"

X:

730 mm

28.7"

Y:

730 mm

28.7"

Z:

680 mm

26.8"

Rapid Traverse:

48,000 mm/min (X / Y), 43,000 mm/min (Z)

1,890 ipm (X / Y), 1,693 ipm (Z)

Maximum Workpiece:

700 mm ø x 400 mm (with limitations)

27.6" ø x 15.75" (with limitations)

MAG-Series

Pallet:

800 x 1000 mm

31.5" x 39.4"

X:

1,520 mm

59.8"

Y:

1,100 mm

43.3"

Z:

1,350 mm

53.1"

Rapid Traverse:

50,000 mm/min

1,968 ipm

Maximum Workpiece:

ø1,500 x 1,500 mm

ø59" x 59"

Pallet:

3,000 x 1,500 mm

118.1" x 59.1"

X:

3,000 mm

118.1"

Y:

1,500 mm

59"

Z:

1,000 mm

29.5"

Rapid Traverse:

X: 62,700 mm/min Y / Z 58,000 mm/min

X: 2,468 ipm Y / Z 2,283 ipm

Maximum Workpiece:

3,000 x 1,500 x 750 mm

118.1" x 59" x 29.5"

Pallet:

3,500 x 1,500 mm

137" x 78.7"

X:

4,000 mm

157.5"

Y:

1,500 mm

59.1"

Z:

1,000 mm

39.4"

Rapid Traverse:

X: 62,700 mm/min Y / Z 58,000 mm/min

X: 2,468 ipm Y&Z 2,283 ipm

Maximum Workpiece:

4,000 x 1,500 x 750 mm

157.4" x 59" x 29.5"

Pallet:

3,500 x 1,500 mm

137.8" x 59.1"

X:

4,000 mm

157.5"

Y:

1,800 mm

70.9"

Z:

1,000 mm

39.4"

Rapid Traverse:

25,400 mm/min

1,000 ipm

Maximum Workpiece:

4,000 x 1,800 x 500 mm

157.5" x 70.9" x 19.7"

Pallet:

3,500 x 2,000 mm

137.8" x 78.7"

X:

4,000 mm

157.5"

Y:

2,200 mm

86.6"

Z:

800 mm

31.5"

Rapid Traverse:

X: 62.7 m/min Y: 50.0 m/min Z: 60.0 m/min

X: 2,468 ipm Y: 1,968 ipm Z: 2,362 ipm

Maximum Workpiece:

4,000 x 2000 x 700 mm

157.5” x 78.7” x 27.6”

Pallet:

6,000 x 2,000 mm

236.0" x 78.7"

X:

6,200 mm

244.1"

Y:

2,200 mm

86.6"

Z:

650 mm

25.6"

Rapid Traverse:

65,000 mm/min (X, Y, Z)

5,560 IPM (X, Y, Z)

Maximum Workpiece:

6,000 mm X 2,200 mm x 500 mm (with limitations)

236" X 86.6" x 19.7" (with limitations)

Pallet:

8,000 x 2,000 mm

315.0" x 78.7"

X:

8,200 mm

322.8"

Y:

2,200 mm

86.6"

Z:

650 mm

25.6"

Rapid Traverse:

65,000 mm/min (X, Y, Z)

5,560 IPM (X, Y, Z)

Maximum Workpiece:

8,000 mm X 2,200 mm x 500 mm (with limitations)

315" X 86.6" x 19.7" (with limitations)

Pallet:

8,000 x 2,300 mm

315.0" x 90.6"

X:

8,200 mm

322.8"

Y:

2,500 mm

98.4"

Z:

650 mm

25.6"

Rapid Traverse:

65,000 mm/min (X, Y, Z)

5,560 IPM (X, Y, Z)

Maximum Workpiece:

8,000 mm X 2,500 mm x 500 mm (with limitations)

315" X 98.4" x 19.7" (with limitations)

Pallet:

Up to 20,000 x 2,300 mm

Up to 787.4" x 90.6"

X:

Up to 20,200 mm

Up to 795.3"

Y:

Up to 2,500 mm

Up to 98.4"

Z:

Up to 650 mm

Up to 25.6"

Rapid Traverse:

65,000 mm/min (X, Y, Z)

2,560 IPM (X, Y, Z)

Maximum Workpiece:

Up to 20,000 mm X 2,300 mm x 500 mm (with limitations)

Up to 787.4" X 90.6" x 19.7" (with limitations)

MCD-Series

Pallet:

1000 mm

39.4"

X:

1500 mm

59.1"

Y:

1600 mm

63.0"

Z:

1300 mm

51.2"

Rapid Traverse:

16000 mm/min

630 in/min

Maximum Workpiece:

ø2000 x 1350 mm

ø78.7" x 53.1"

Pallet:

1000 mm

39.4"

X:

2000 mm

78.7"

Y:

1600 mm

63.0"

Z:

1300 mm

51.2"

Rapid Traverse:

16,000 mm/min

630 in/min

Maximum Workpiece:

ø2000 x 1520 mm R

Ø78.7" x 60" R

Pallet:

1800 X 1000 mm

70.9" X 39.4"

X:

2000 mm

78.7"

Y:

1600 mm

63.0"

Z:

1300 mm

51.2"

Rapid Traverse:

16,000 mm/min

630 IPM

Maximum Workpiece:

1100 mm x 2000 mm x 640 mm (with limitations)

43.3" x 78.7" x 25.2" (with limitations)

Pallet:

1800 x 1000 mm

70.8" X 39.4"

X:

2500 mm

98.4"

Y:

1600 mm

63.0"

Z:

1300 mm

51.2"

Rapid Traverse:

16,000 mm/min

630 in/min

Maximum Workpiece:

2700 x 1600 mm R

106.3" X 63" R

N-Series

Pallet:

200 mm ø

7.87" ø

X:

300 mm

11.8"

Y:

300 mm

11.8"

Z:

230 mm

9.1"

Rapid Traverse:

42,000 mm/min (X / Y), 56,000 mm/min (Z)

1,653 ipm (X / Y), 2,205 ipm (Z)

Maximum Workpiece:

300 mm ø x SR270 mm (with limitations)

11.8" ø x SR10.6" (with limitations)

Spindle Taper:

HSK-A40

HSK-A40

T-Series

Pallet:

1,000 mm

39.37"

X:

1,500 mm

59.1"

Y:

1,300 mm

51.2"

Z:

2,000 mm

78.7"

Rapid Traverse:

25,000 mm/min

984.3 in/min

Maximum Workpiece:

ø1,500 mm x 1,500 mm

ø59" x 59"

Pallet:

1,000 mm x 1,250 mm

39.4" x 49.2"

X:

2,000 mm

78.7"

Y:

2,000 mm

78.7"

Z:

1,800 mm

70.8"

Rapid Traverse:

20,000 mm/min

787 ipm

Maximum Workpiece:

ø1,900 x 2,000 mm

ø74.8" x 78.7"

Pallet:

4,000 x 1,500 mm

157.5" x 59.1"

X:

4,200 mm

165.3"

Y:

2,000 mm

78.7"

Z:

1000 mm

39.4"

Rapid Traverse:

16,000 mm/min

630 ipm

Maximum Workpiece:

4,000 x 1,500 x 700 mm

157.4 x 59.0 x 27.4"
