Horizontal 4‑Axis

Get reliability, stability and precision with Makino's line of our 4-axis horizontal machining centers. Our high-speed, high-performance spindles give you the highest repeatable metal removal rates.

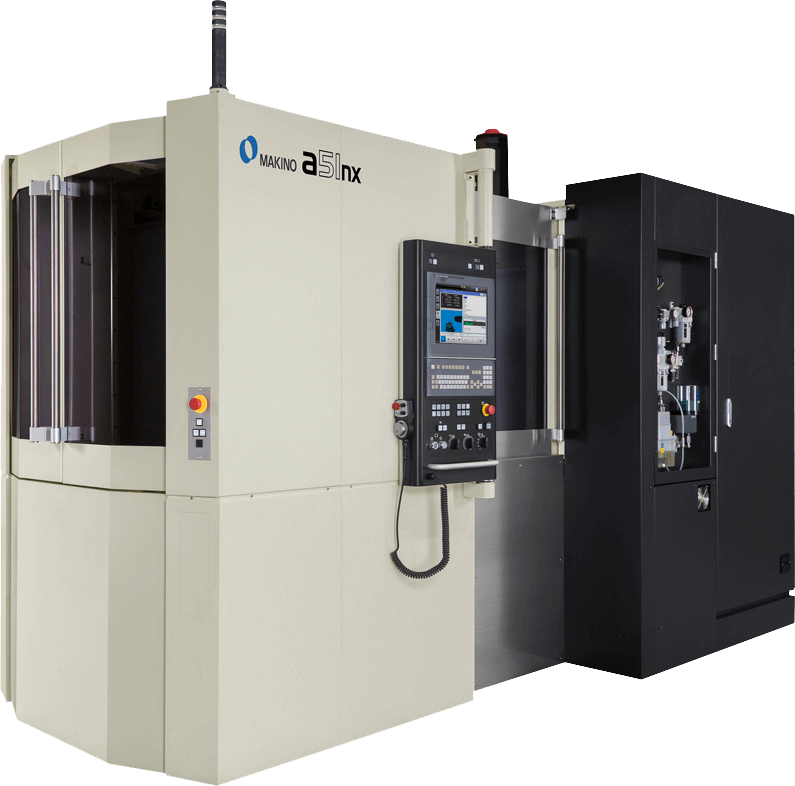

a51nx sil

Take Control of Production with Speed, Accuracy and Reliability

Makino reliability and easy maintenance mean your horizontal machining center maintains accuracy and productivity for years, adding value and ROI far beyond any other CNC milling machine on the market.

Makino leverages the latest technology in every machine. Patented technologies in our high-speed, high-performance spindles give our horizontal milling machines the highest repeatable metal-removal rates. That’s why Makino users lead the industry in the speed and part quality customers demand.

Makino’s 1-Series machines are the top-selling 4-axis horizontal machining centers in North America, setting the industry standard. Our full line includes the MCC-Series and MCD-Series for large parts and molds made of steel and other hardened materials.


Get the most out of your machines

Unlock the potential of your processes and eliminate inefficiency in every operation with Makino Engineering Services. Learn how we can guarantee cycle times and lower your cost per part.
Contact Us

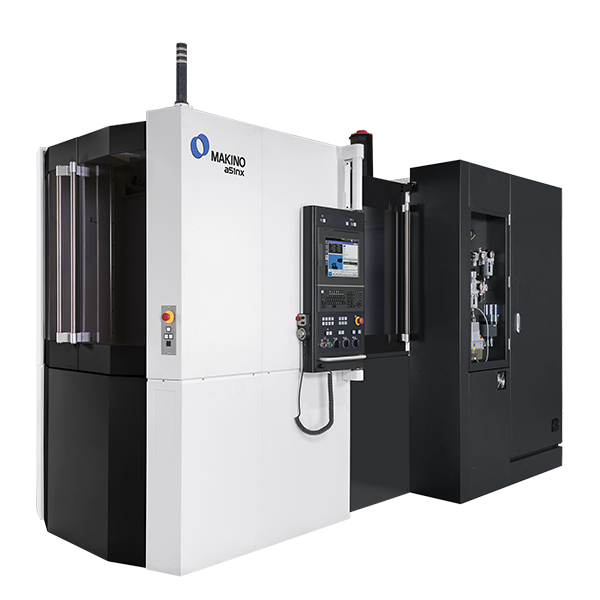

1-Series (400 mm)

Pallet:

400 x 400 mm

15.75" x 15.75"

X:

560 mm

22.0"

Y:

640 mm

25.2"

Z:

640 mm

25.2"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

ø630 mm x 900 mm

ø24.8" x 35.4"

Spindle Taper:

CAT40 (HSK-A63 opt)

CAT40 (HSK-A63 opt)

Pallet:

400 x 400 mm

15.7" x 15.7"

X:

560 mm

22.0"

Y:

640 mm

25.2"

Z:

640 mm

25.2"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

ø630 mm x 900 mm

ø24.8" x 35.4"

Spindle Taper:

CAT40 (HSK-63)

40 (HSK-63)

1-Series (500 mm)

Pallet:

500 x 500 mm

19.7" x 19.7"

X:

730 mm

28.7"

Y:

650 mm std (730 mm opt)

25.6" std (28.7" opt)

Z:

800 mm

31.5"

Rapid Traverse:

60,000 mm/min

2,362ipm

Maximum Workpiece:

ø800 mm x 1,000 mm

ø31.5" x 39.4"

Spindle Taper:

CAT40 (HSK-A63 opt)

CAT40 (HSK-A63 opt)

Pallet:

500 x 500 mm

19.7" x 19.7"

X:

800 mm

31.5"

Y:

750 mm

29.5"

Z:

830 mm

32.7"

Rapid Traverse:

(X / Y) 50,000 mm/min
(Z) 60,000 mm/min

(X / Y) 1,968 ipm, (Z) 2,362 ipm

Maximum Workpiece:

ø900 mm x 1,000 mm

ø35.4" x 39.4"

Spindle Taper:

CAT50 (HSK-A100 opt)

CAT50 (HSK-A100 opt)

1-Series (630 mm)

Pallet:

630 mm x 630 mm

24.8" x 24.8"

X:

900 mm

35.4"

Y:

900 mm

35.4"

Z:

1,020 mm

40.2"

Rapid Traverse:

50,000 mm/min (Std)
36,000 mm/min (High Torque)

1,968 in/min (Std)
1,417 in/min (High Torque)

Maximum Workpiece:

ø1,000 mm x 1,300 mm

ø39.4" x 51.2"

Spindle Taper:

CAT50 (HSK-A100 opt)

CAT50 (HSK-A100 opt)

1-Series (800 mm)

Pallet:

800 x 800 mm

31.5" x 31.5"

X:

1,400 mm

55.1"

Y:

1,200 mm

47.2"

Z:

1,350 mm

53.1"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

∅ 1,450 x 1,450 mm

∅ 57.1" x 57.1"

Spindle Taper:

CAT50 (HSK-A100)

CAT50 (HSK-A100)

Pallet:

800 x 1,000 mm

31.5" x 39.4"

X:

1,520 mm

59.8"

Y:

1,250 mm

49.2"

Z:

1,350 mm

53.1"

Rapid Traverse:

50,000 mm/min

1,969 ipm

Maximum Workpiece:

ø1,500 x 1,500 mm

ø59" x 59"

Spindle Taper:

CAT50 (HSK-A100 opt)

CAT50 (HSK-A100 opt)

1-Series (1000mm)

Pallet:

1,000 mm x 1,000 mm

39.4" x 39.4"

X:

1,900 mm

74.8"

Y:

1,600 mm

63.0"

Z:

1,700 mm

63.0"

Rapid Traverse:

54,000 mm/min

2,126 IPM

Maximum Workpiece:

ø2,100mm x 1,800mm

ø82.7" x 70.9"

Spindle Taper:

CAT50 (HSK-A100 opt)

CAT50 (HSK-A100 opt)

J-Series

Pallet:

ø400 mm std.

ø15.7" std

X:

400 mm std (630 mm opt.)

15.7" (24.8" opt.)

Y:

400 mm std (550 mm opt.)

15.7" (21.7" opt.)

Z:

400 mm std (550 mm opt.)

15.7" (21.7" opt.)

Rapid Traverse:

65,000 mm/min

2,362 ipm

Maximum Workpiece:

Up to ø710 mm X 580 mm
(consult factory)

ø27.9" X 28.7"
(consult factory)

Spindle Taper:

HSK-A50 (HSK-A63 opt)

HSK-A50 (HSK-A63 opt)

Pallet:

500 x 500 mm std. (400 x 400 mm opt.)

19.7" (15.7 opt.)

X:

1,500 mm

59.1”

Y:

650 mm

1,000 mm (HSK-A63) / 930 mm (HSK-A100)

Z:

650 mm

25.6”

Rapid Traverse:

X: 50,000 mm/min
Y/Z: 60,000 mm/min

X: 1,968 inches/min
Y/Z: 2,362 inches/min

Maximum Workpiece:

(depends on A-axis, B-axis, or A/B-axes type – request machine specs)

(depends on A-axis, B-axis, or A/B-axes type – request machine specs)

Pallet:

Differs by kinematic variant (consult us for details)

Differs by kinematic variant (consult us for details)

X:

750 mm

29.5”

Y:

560 mm

22.0”

Z:

500 mm (“stroke-up” std. for X, Y, Z)

19.9” (“stroke-up” std. for X, Y, Z)

Rapid Traverse:

75,000 mm/min

2,953 ipm

Maximum Workpiece:

Differs by kinematic variant (consult factory for details)

Differs by kinematic variant (consult factory for details)

Spindle Taper:

HSK-A63

HSK-A63

MCD-Series

Pallet:

1800 mm x 1300 mm

70.9" x 51.2"

X:

2000 mm

78.7"

Y:

1800 mm

70.9"

Z:

1300 mm (1500 opt)

51.2" (59.1" opt)

Rapid Traverse:

16000 mm/min

630 IPM

Maximum Workpiece:

2200 mm ᴓ X 2100 mm (with limitations)

86.6" ᴓ x 82.7" (with limitations)
