Vertical 5‑Axis

Increase speed and precision with 5-axis vertical machining. The Makino rotary axes’ speed reduces your cycle time, while our dynamic accuracies produce a higher quality surface finish.
V90S sil

Tighter tolerances, better parts

Moving to 5-axis machining permits using shorter tooling, optimizes contact between the tool and part providing ideal cutting conditions, improves stiffness and rigidity, provides less run-out, and improves surface finishes. The transition to a Makino 5-axis vertical machine center can increase productivity, reduce cycle times, decrease costs and even eliminate the need for hand-finishing.

Our high-speed spindle, advanced motion and control technologies offers you unmatched speed, high feeds and the tightest accuracies for the most complex applications. Also, our advanced motion control and proprietary Super Geometric Intelligence 5 (SGI 5) gives you 20% to 60% faster cycle times, improving accuracy and surface finishes.

Makino 5-axis CNC milling machines are built to consistently outperform industry standards. While they maintain a target of 50% of stated specifications, in practice they regularly achieve 25% to 35% of the industry prescribed tolerance.  Tighter tolerances, better parts.

D-Series

Table:

300 mm diameter

11.81" diameter

X:

350 mm

13.7"

Y:

300 mm

11.8"

Z:

250 mm

9.8"

Rapid Traverse:

60 m / min

2,362 ipm

Table:

300 mm diameter

11.8" diameter

X:

300 mm

11.8"

Y:

500 mm

19.7"

Z:

350 mm

13.8"

Rapid Traverse:

60,000 mm/min

2,362 in/min

Maximum Workpiece:

450 diameter x 240 mm (conditional)

17.7" diameter x 10.6" high (conditional)

Table:

300 mm x 340 mm

11.81" x 13.38"

X:

450 mm

17.7"

Y:

620 mm

25.6"

Z:

500 mm

19.7"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

450 mm diameter x 400 mm (conditional)

17.7" diameter x 10.6 " (conditional)

Table:

Polygon taper work pallet

Polygon taper work pallet

X:

450 mm

17.7"

Y:

620 mm

25.6"

Z:

500 mm

19.7"

Rapid Traverse:

60,000 mm/min

2,362 ipm

Maximum Workpiece:

Stand-alone 360 mm in diameter, 300 mm tall (top row, 8 positions), 280 mm tall (32 positions, all other rows)

14.2" in diameter, 11.2" tall (top row, eight positions), 11.8" tall (32 positions, all other rows)

Pallet:

400 x 400 mm

15.74" x 15.74"

Table:

500ø mm

19.68"ø

X:

800 mm

31.49"

Y:

900 mm

35.43"

Z:

550 mm

21.65"

Maximum Workpiece:

800ø x 500 mm (conditional)

31.5"ø x 19.68" (conditional)

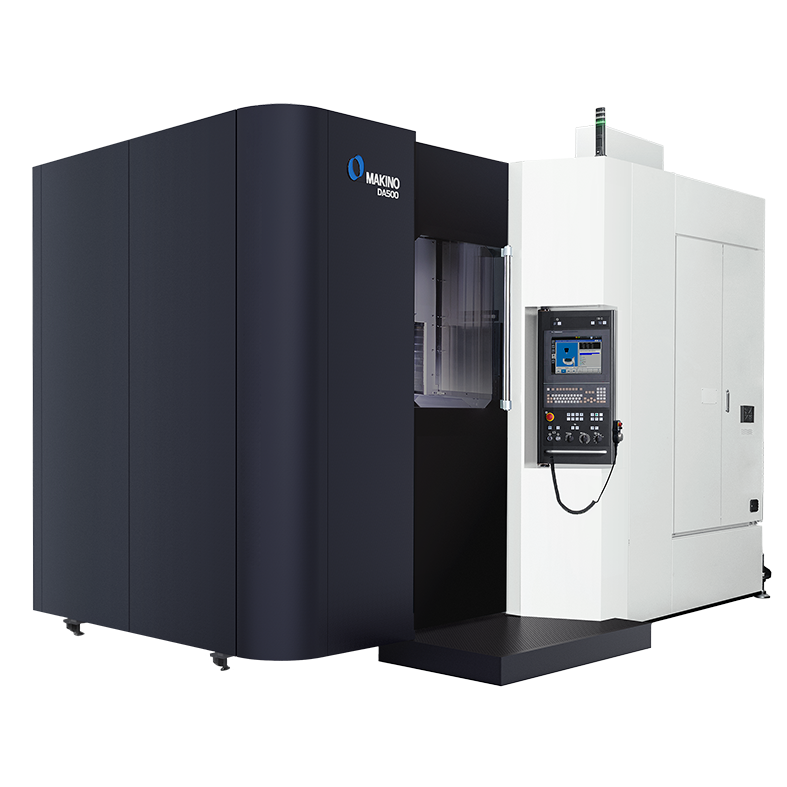

Pallet:

400 x 400 mm

15.7" x 15.7"

Table:

500 mm diameter

19.6" diameter,

X:

550 mm

21.6"

Y:

1,000 mm

39.4"

Z:

500 mm

19.7"

Rapid Traverse:

48,000 mm/min (X) 50,000 m/min (Y / Z)

1,890 in/min (X) 1,970 in/min (Y / Z)

Maximum Workpiece:

650 mm x 500 mm height (conditional)

25.6" diameter x 19.6" height (conditional)

Table:

800 mm  ø

31.5"  ø

X:

1,200 mm

47.24"

Y:

1,100 mm

43.30"

Z:

650 mm

25.59"

Rapid Traverse:

36,000 mm/min

1,417 ipm

Maximum Workpiece:

1,000 mm ø x 500 mm (with limitations)

39.4" ø x 21.65" (with limitations)

Spindle Taper:

CAT40 (HSK-A63 opt)

CAT40 (HSK-A63 opt)

Table:

800 mm ø

31.5" ø

X:

1,200 mm

47.24"

Y:

1,100 mm

43.30"

Z:

650 mm

25.59"

Rapid Traverse:

36,000 mm/min

1,417 ipm

Maximum Workpiece:

1,000 mm ø x 550 mm (with limitations)

39.4" ø x 21.65" (with limitations)

Spindle Taper:

CAT50 (HSK-A100)

CAT50 (HSK-A100)

Pallet:

1,000 mm x 1,000 mm / 1,250 mm x 1,000 mm

39.6" x 39.6" & 49.2" x 39.6"

Table:

1,600 mm x 1,200 mm

63" x 47.24"

X:

2,200 mm

86.61"

Y:

2,300 mm

90.56"

Z:

1,100 mm

43.3"

Rapid Traverse:

58,000 mm/min

2,283 in/min

Maximum Workpiece:

2,100 mm ø x 1,700 mm

82.67" ø x 66.92"

V-Series

Table:

200 mm diameter

7.8"ø

X:

650 mm

25.6"

Y:

325 mm

12.7"

Z:

350 mm

13.7"

Rapid Traverse:

20,000 mm/min

787 in/min

Maximum Workpiece:

250mm ø x 135 mm (conditional)

9.8"ø x 5.31" (conditional)

Table:

1,300 mm x 1,000 mm

51.81" x 39.37"

X:

1,300 mm

51.2"

Y:

1,000 mm

39.3"

Z:

600 mm

23.6"

Rapid Traverse:

58,000 mm/min

2,283 in/min

Maximum Workpiece:

1,500 mm x 1,200 mm x 550 mm

59" x 47.42" x 21.65"

Table:

2,000 mm x 1,300 mm

78.73" x 51.18"

X:

2,000 mm

78.7"

Y:

1,300 mm

51.2"

Z:

800 mm

31.5"

Rapid Traverse:

58,000 mm/min

2,283 in/min

Maximum Workpiece:

2,200 mm x 1,500 mm x 700 mm

86.61" x 59.05" x 27.55"

Table:

2,000 mm x 2,500 mm

78.73" x 98.42"

X:

2,000 mm

78.7"

Y:

2,500 mm

98.42"

Z:

800 mm

31.5"

Rapid Traverse:

58,000 mm/min (X / Z Axes), 25,000mm/min (Y-Axis)

2,283 in/min (X / Z Axes), 984 in/min (Y-Axis)

Maximum Workpiece:

2,000 mm x 2,500 mm x 1,050 mm (with limitation)

78.74” x 98.42” x 41.33” (with limitation)
